What are the main types of switchgear used in electrical systems?

Switchgear is an essential component of electrical systems, used to control, protect, and isolate electrical equipment. The main types of switchgear include:

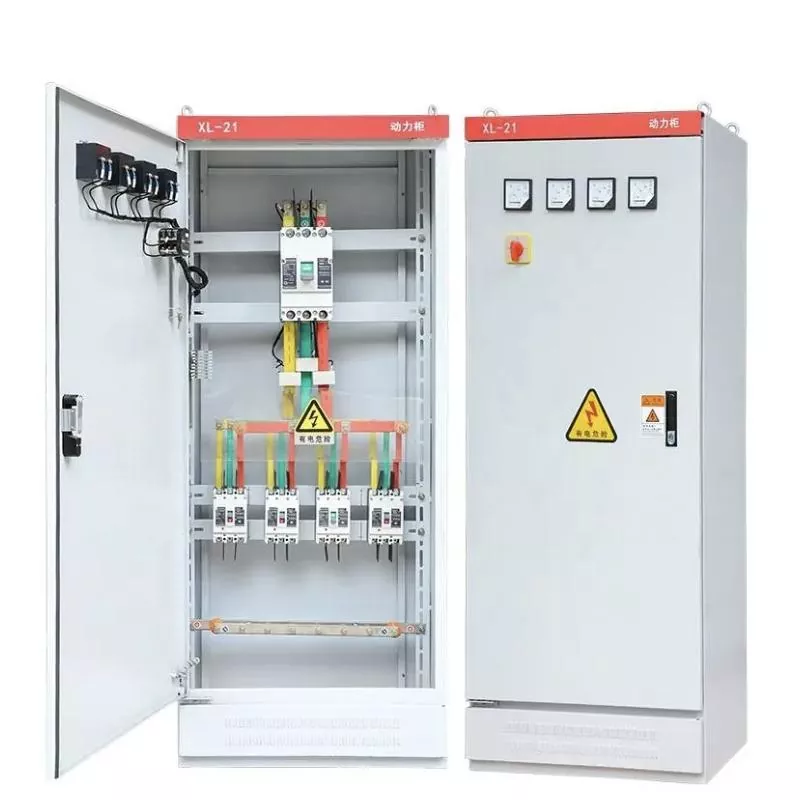

1. Low Voltage (LV) Switchgear – Used for voltages up to 1 kV, commonly found in residential, commercial, and industrial applications.

2. Medium Voltage (MV) Switchgear – Operates within the range of 1 kV to 36 kV and is used in substations and industrial plants.

3. High Voltage (HV) Switchgear – Used for voltages above 36 kV, typically found in power transmission networks.

Switchgear can also be classified based on insulation type:

- Air Insulated Switchgear (AIS) – Uses air as an insulating medium and is cost-effective but requires more space.

- Gas Insulated Switchgear (GIS) – Uses SF₆ gas for insulation, making it compact and suitable for high-voltage applications.

- Oil Insulated Switchgear – Uses oil for insulation and arc extinction but is less common today due to environmental concerns.

Additionally, switchgear is categorized by operating mechanism:

- Metal-Enclosed Switchgear – Fully enclosed for safety and protection.

- Outdoor Switchgear – Designed for external installation and exposure to environmental conditions.

Each type of switchgear is selected based on voltage requirements, environmental conditions, and system protection needs. Let me know if you need a more detailed explanation!
