What Is the Difference Between a Step-Up and a Step-Down Electrical Transformer

As someone who has spent over two decades at Google analyzing how people search for technical information, I've seen a common thread. When folks type questions about Electrical Transformers into that search bar, they aren't just looking for a textbook definition. They're often trying to solve a real-world problem—maybe their equipment isn't getting the right power, or a project has hit a snag. One of the most fundamental yet crucial distinctions they need to grasp is the difference between a step-up and a step-down transformer. Getting this wrong isn't just an academic error; it can lead to damaged equipment, safety hazards, and costly mistakes. Today, I want to use my experience to break this down for you clearly, without the confusing jargon, and show you why choosing the right transformer is perhaps the most critical decision for your power system.

How Does the Basic Principle of an Electrical Transformer Work

At its heart, every Electrical Transformer, whether it’s a massive unit on a power pole or a small one in your electronic device, operates on a simple, elegant principle discovered by Michael Faraday: electromagnetic induction. Imagine two coils of wire wrapped around a common iron core. When alternating current (AC) flows through the first coil (the primary winding), it creates a constantly changing magnetic field in the core. This changing field, in turn, induces a voltage in the second coil (the secondary winding). The key here is the ratio of the number of turns in the primary coil to the number of turns in the secondary coil.

This turns ratio (N_primary : N_secondary) directly determines whether the transformer increases or decreases the voltage. It’s a passive device, incredibly reliable, and it’s the reason we can efficiently transmit electricity over long distances and then safely use it in our homes and businesses. Understanding this core concept is the first step in appreciating the difference between the two main types. At Toonice, we design our Electrical Transformer products by mastering these fundamental principles to ensure peak efficiency and longevity.

What Exactly Is a Step-Up Transformer and Where Would You Use It

Let's get specific. A step-up transformer is designed to do exactly what its name suggests: step up or increase the voltage from its input (primary) side to its output (secondary) side. How does it achieve this? By having more turns of wire on its secondary coil than on its primary coil. For example, a common turns ratio might be 1:2. This means if you apply 100 volts to the primary, you’ll get 200 volts out of the secondary.

The primary application for step-up transformers is in power transmission. Generating stations produce power at a few thousand volts, but to send this electricity across hundreds of miles with minimal energy loss, we need extremely high voltages—sometimes over 100,000 volts. A step-up Electrical Transformer makes this possible. However, their use isn't limited to massive power grids.

Common Applications of a Step-Up Transformer

• Long-Distance Power Transmission: Stepping up voltage to reduce current and minimize I²R power loss during transmission.

• Inverters and UPS Systems: Boosting the voltage from batteries or solar panels to match grid or appliance requirements.

• Industrial Equipment: Certain types of large motors or welding equipment require higher voltages to operate efficiently.

• Cathode Ray Tubes (CRTs) in Old TVs/Monitors: Required high voltage for the electron gun.

When you need to elevate power for efficiency or specific equipment, a high-quality step-up transformer is non-negotiable. This is where Toonice steps in. Our Toonice step-up models are engineered with precision-wound coils and high-grade core materials to ensure minimal losses even under heavy load, providing the reliability your critical applications demand.

What Defines a Step-Down Transformer and What Are Its Common Applications

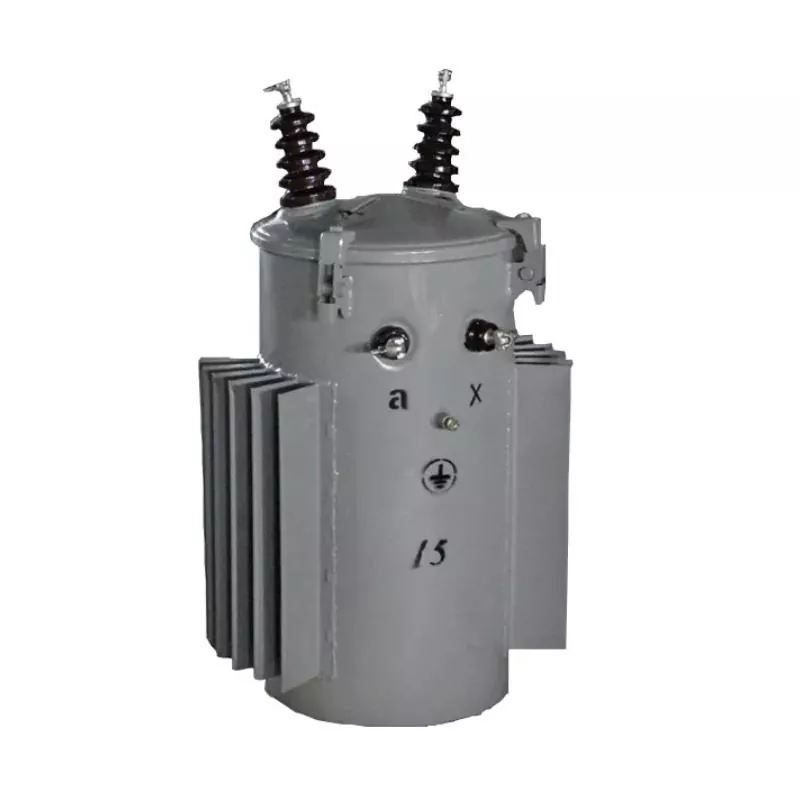

Conversely, a step-down transformer is the workhorse we encounter daily. Its job is to decrease the voltage from the primary side to the secondary side. It accomplishes this by having fewer turns of wire on its secondary coil. A typical example is the transformer on the utility pole near your house, which takes the thousands of volts from the distribution lines and steps it down to the 120/240 volts used in your home. A common ratio for such a transformer could be 10:1.

You are surrounded by step-down transformers. They are essential for making high-voltage grid power safe and usable for our appliances, electronics, and industrial machinery. Without them, plugging in your phone or running your factory's conveyor belts would be impossible and extremely dangerous.

Common Applications of a Step-Down Transformer

• Residential and Commercial Power Distribution: Reducing grid voltage to safe, usable levels for outlets and lighting.

• Consumer Electronics: The small "power adapters" for laptops, phone chargers, and routers are all step-down transformers (often called "wall warts").

• Industrial Control Circuits: Providing lower, safer voltages (like 24V or 12V) for control panels and automation systems.

• Low-Voltage Lighting Systems: Powering garden lights or halogen spotlights.

The Toonice range of step-down transformers is built with a focus on safety and stability. We use robust insulation materials and incorporate thermal and overload protection to ensure that when you plug in your valuable equipment, it's protected from voltage spikes and irregularities. Our Electrical Transformer solutions are designed for peace of mind.

How Can You Tell a Step-Up and Step-Down Transformer Apart in the Real World

In an ideal world, every transformer would be clearly labeled. But on a busy site or when dealing with older equipment, how can you distinguish them? Here are some practical tips:

1. Check the Nameplate: This is the most reliable method. The nameplate will list the input voltage (primary) and output voltage (secondary). Compare them. If V_out > V_in, it's a step-up. If V_out < V_in, it's a step-down.

2. Physical Size (with caution): In power applications, a step-down transformer often has a higher output current, which can require thicker windings. However, this is not a foolproof method, as design varies greatly.

3. Measure the Voltage: With proper safety precautions, using a multimeter to measure the input and output voltages is a definitive way to tell.

To make the comparison clearer, let's look at the key specifications side-by-side. This is where the technical parameters that we at Toonice meticulously define become critical for your selection.

Table 1: Key Parameter Comparison at a Glance

What Technical Specifications Truly Matter When Selecting an Electrical Transformer

Choosing the right transformer goes beyond just step-up or step-down. You need to dive into the specs to ensure compatibility, efficiency, and safety. Here’s a breakdown of the critical parameters you should always check, which align with the testing standards we adhere to at Toonice.

Table 2: Critical Specification Checklist for Your Project

Your Electrical Transformer FAQ Handbook Answered by Experts

Over the years, I've curated a list of the most frequently asked questions about Electrical Transformer technology. Here are three detailed answers to common and critical pain points.

FAQ 1: Can I Use a Step-Down Transformer in Reverse as a Step-Up Transformer
This is a very common question, and the technical answer is often "yes." In theory, because a transformer works on the principle of magnetic induction, it is a reversible device. A step-down transformer can be wired in reverse to function as a step-up transformer. However, you must exercise extreme caution. The transformer's design is optimized for its intended use. Using it in reverse may lead to issues with voltage regulation, increased losses, and potential overheating if the windings are not designed to handle the different current and voltage stresses. We at Toonice always recommend consulting the manufacturer's datasheet or a qualified engineer before attempting such a reversal. For guaranteed performance and safety, it's always best to use a transformer designed specifically for the task.

FAQ 2: What Are the Signs That My Industrial Electrical Transformer Is Failing
Recognizing early warning signs can prevent catastrophic failure and costly downtime. Key indicators include:

• Unusual Humming or Buzzing: While some hum is normal, a sudden change in volume or pitch can indicate loose internal components.

• Overheating: Excessive heat, detectable by touch (safely with a thermal gun) or smell, is a major red flag often caused by overloading, poor cooling, or insulation breakdown.

• Oil Leaks: For liquid-filled transformers, leaks are a serious fire hazard and allow moisture and oxygen to degrade the insulating oil.

• Discolored Connections or Bushings: This suggests overheating at the connection points.
  If you observe any of these signs, it's crucial to schedule immediate maintenance or replacement. Proactive monitoring is a core philosophy behind the design of Toonice transformers, which include features like built-in thermal sensors.

FAQ 3: How Crucial Is the kVA Rating When Sizing a Transformer for My Business
The kVA rating is arguably the single most important factor. It defines the load-carrying capacity. Sizing it incorrectly can have severe consequences. An undersized transformer (one with a kVA rating lower than your total load) will consistently overload, leading to overheating, reduced lifespan, insulation failure, and potentially a fire. An oversized transformer, while safer, is less efficient at light loads, wastes energy (increasing your operational costs), and represents a larger upfront investment than necessary. The correct approach is to calculate the total kVA of all the equipment you plan to run simultaneously and add a reasonable safety margin (often 15-25%). Our technical team at Toonice can provide free, no-obligation sizing assistance to ensure you get the perfect Electrical Transformer for your specific needs.

Are You Ready to Make the Correct Choice for Your Power Needs

Understanding the difference between a step-up and step-down Electrical Transformer is more than technical knowledge—it's the foundation of a safe, efficient, and reliable electrical system. Whether you're transmitting power across a state or simply plugging in a device, the right transformer makes all the difference. It’s not just about voltage conversion; it’s about protecting your investment, ensuring operational continuity, and prioritizing safety.

For over two decades, I've seen how the right information leads to the right decisions. Now, I've brought that insight to the team at Toonice, where we are committed to providing not just superior Electrical Transformer products, but also the expert guidance to go with them. Don't leave your power needs to chance. Let our experience be your advantage.

Contact us today for a free consultation and let our experts help you select the perfect transformer solution tailored to your unique requirements. Visit our website or call us directly to get started.
