In today’s fast-evolving power systems, the Indoor High Voltage Load Switch plays a pivotal role in ensuring safe, reliable, and efficient electrical distribution. This blog explores its design, applications, advantages, and industry best practices, providing a comprehensive guide for engineers, electricians, and decision-makers. The content highlights Toonice’s high-quality products and solutions for modern electrical networks.

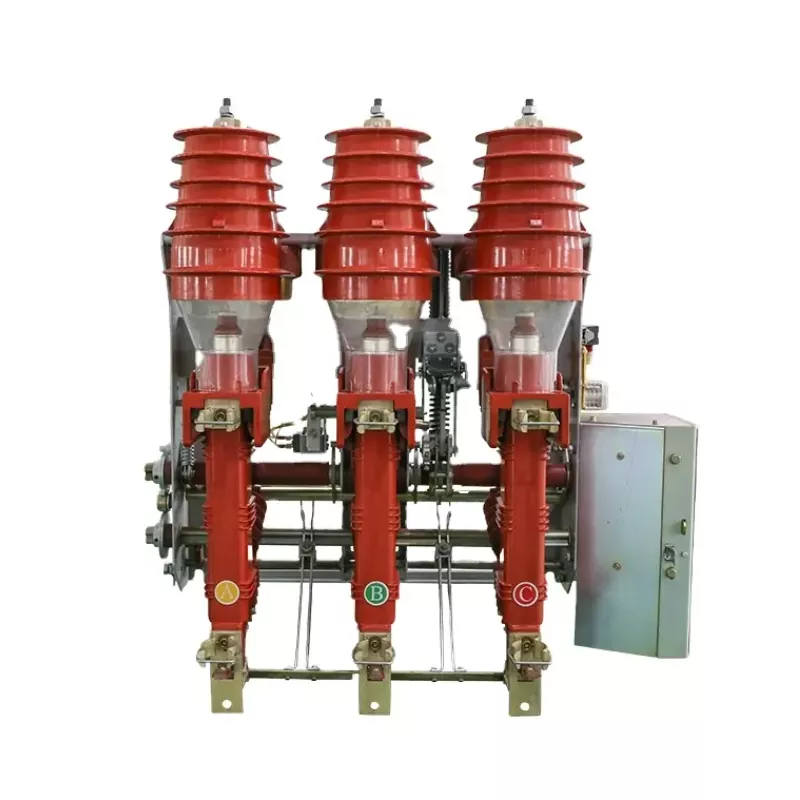

An Indoor High Voltage Load Switch is a critical component in medium- and high-voltage electrical systems, designed to control and isolate electrical circuits safely. Unlike outdoor switchgear, indoor load switches offer compact installation, improved safety, and reduced maintenance requirements. Toonice specializes in providing reliable indoor load switches that meet international standards and industry certifications.
The Indoor High Voltage Load Switch operates by mechanically or electronically opening and closing electrical circuits under load conditions. This ensures uninterrupted power flow while protecting electrical components. The main mechanisms include:
These mechanisms are carefully engineered to maintain reliability, prevent arc damage, and extend equipment life.
Toonice’s indoor high voltage load switches are widely recognized for their robust construction and long-term performance in industrial and commercial applications.
| Parameter | Description | Typical Value |
|---|---|---|
| Rated Voltage | Maximum operational voltage | 12kV, 24kV, 36kV |
| Rated Current | Maximum continuous current carrying capacity | 630A, 1250A |
| Short-Circuit Breaking Capacity | Capability to safely interrupt fault current | 20kA – 31.5kA |
| Operating Mechanism | Switch actuation type | Manual / Motorized |
| Insulation Medium | Electrical insulation type | Air / SF6 / Vacuum |
The Indoor High Voltage Load Switch is used in a variety of industries and settings:
Toonice ensures each load switch is optimized for its specific application scenario, providing long-term operational stability.
Proper maintenance enhances the life and reliability of indoor high voltage load switches:
Indoor switches are designed for installation inside substations or buildings, offering compact size, controlled environment operation, and reduced maintenance, while outdoor switches are weather-resistant and typically larger.
Visual inspections should be conducted at least every 6 months, and comprehensive mechanical and electrical tests should be performed annually or according to Toonice’s recommended maintenance schedule.
Yes, modern switches can be motorized and integrated into automated control systems for remote operation and monitoring.
Toonice products adhere to international standards such as IEC 62271, ANSI C37, and other relevant electrical safety regulations.
With proper maintenance, Toonice switches can last 20-30 years, depending on operating conditions and environmental factors.
The Indoor High Voltage Load Switch is an indispensable component for reliable, safe, and efficient power distribution. Toonice offers premium solutions with advanced safety features, high durability, and compliance with international standards. Whether for industrial, commercial, or renewable energy applications, choosing a quality load switch from Toonice ensures operational excellence.
Ready to enhance your electrical systems? Contact us today for expert guidance and customized solutions.
