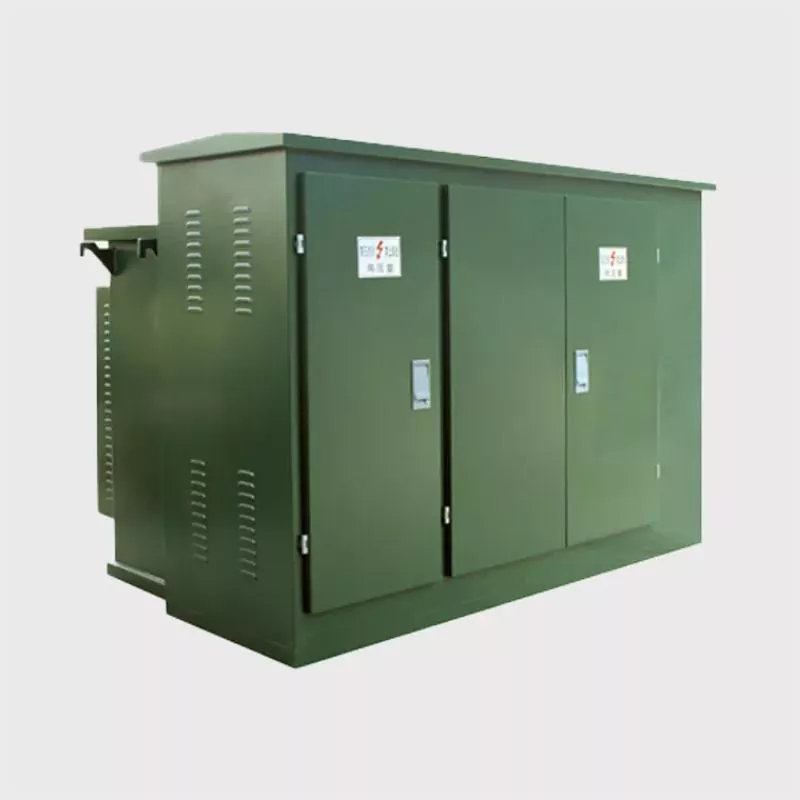

American Type Prefabrication Substation

The casing of American-style transformer substations is primarily composed of a base, side panels, partition panels, doors, and a top cover. The interior is divided into three chambers: high-voltage, transformer, and low-voltage.

The high-voltage chamber adopts a reliable compact design with comprehensive anti-misoperation interlock functions, ensuring high reliability and easy maintenance. It can be equipped with terminal load switches, loop network switchgear, and other high-voltage switching devices.

The transformer chamber accommodates oil-immersed or dry-type transformers with a capacity of up to 1600Kvar and a voltage rating of 12/0.4KV. Fitted with isolation protective nets, it supports natural or forced ventilation. Optional automatic temperature controllers, room temperature monitoring, and ventilation devices that automatically switch on/off are available as needed.

The low-voltage chamber includes standard configurations for power distribution, metering, and reactive power compensation. It can be customized to design secondary control circuits and the number of outgoing lines according to project requirements.

Features and Applications

Fully insulated, fully enclosed, maintenance - free, reliably ensuring personal safety;

Compact structure, volume is only 1/3 - 1/5 of the same - capacity European - style transformer, with low height;

Can adopt split - box structure to avoid contamination of the oil in the transformer oil tank;

High - voltage side adopts double fuses for full - range protection, greatly reducing the cost;

Can be used in loop network or terminal, and the cable head can be emergently plugged in and pulled out at 200A load current;

The casing adopts honeycomb - type double - layer composite board, which has the function of insulating and dissipating heat;

The low - voltage side is equipped with an electronic phase - loss protector. When abnormal voltage occurs in the system, it can quickly disconnect the main incoming switch;

High - voltage side oil - immersed load switch or SF6 load switch can be motorized upgraded, laying a foundation for realizing distribution network automation;

Adopts oil - immersed S9 or better - performance S11 series transformers.

Toonice American-style transformer substations (ZGS13 series integrated substations) feature a small footprint, easy installation and maintenance, low noise, low loss, anti-theft design, full protection, and strong overload capacity. They are suitable for applications in new residential areas, greenbelts, parks, stations, hotels, construction sites, airports, and other similar locations.

Usage Environment

1. Altitude: not exceeding 1000m;

2. Ambient temperature: -35℃ ~ +40℃;

3. Relative humidity: daily average not more than 95%, monthly average not more than 90%;

4. Installation site: a place free of fire, explosion hazards, chemically corrosive gases, with good ventilation, and ground inclination not more than 3°;

Note: When ordering this product beyond the above - specified conditions, please consult with our company.

Technical Parameter

The American Type Prefabrication Substation offers advanced features and versatile applications, making it a valuable solution for modern electrical distribution and power management needs.
