What Is a Box Type Substation?

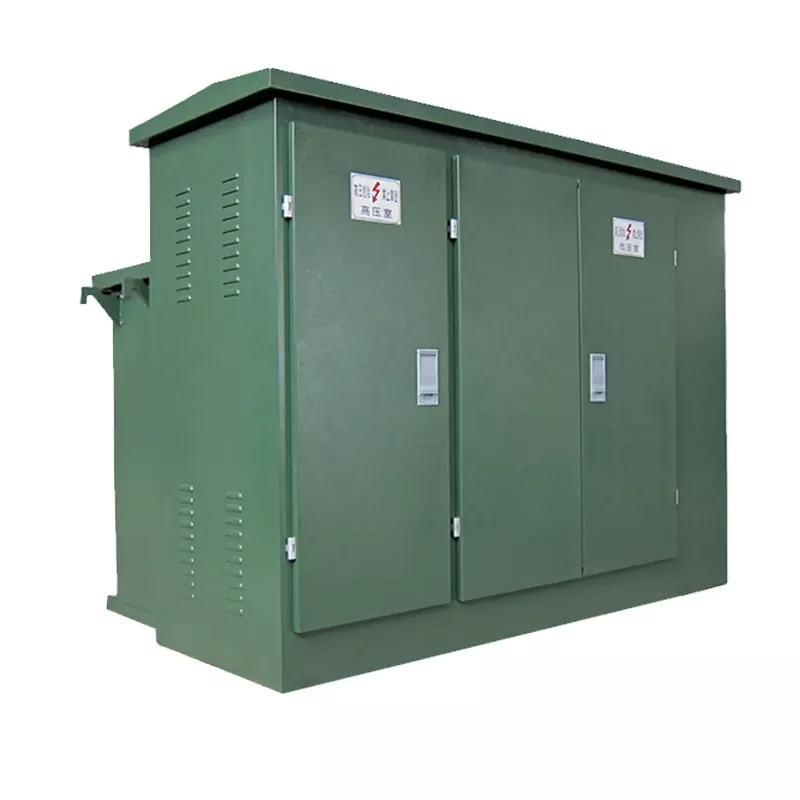

A Box Type Substation (BTS) is a compact, prefabricated electrical substation designed for high-voltage to low-voltage transformation in power distribution systems. Unlike traditional substations, BTS integrates transformers, switchgear, and protection devices into a single modular unit, significantly reducing installation time and space requirements.
TOONICE's Box Type Substations feature fully-sealed aluminum alloy enclosures that withstand extreme temperatures ranging from -40℃ to 60℃. These substations utilize SF6 insulation and intelligent temperature control systems to ensure stable and reliable operation, even in harsh environments.
What Are the Key Components of a Box Type Substation?
The main components of a Box Type Substation include:
- Transformer: Converts high voltage to low voltage suitable for distribution.
- High Voltage Switchgear: Controls and protects the high-voltage side of the substation.
- Low Voltage Switchgear: Manages low-voltage distribution to consumers.
- Protection Devices: Circuit breakers, relays, and fuses to prevent faults and ensure safety.
- Monitoring System: Allows real-time tracking of voltage, current, and temperature.
Below is a quick comparison of traditional vs box type substations:
| Feature | Traditional Substation | Box Type Substation |
|---|---|---|
| Footprint | Large, requires significant land | Compact, saves over 60% space |
| Installation Time | Several weeks to months | 72 hours for deployment |
| Maintenance | Complex and time-consuming | Simplified with modular components |
| Cost | Higher due to civil works | More affordable and efficient |
Why Should You Choose a Box Type Substation?
Box Type Substations offer multiple advantages that make them ideal for modern power distribution:
- Space-Saving: Modular design reduces floor area by more than 60% compared to conventional substations.
- Rapid Deployment: Pre-fabricated design allows installation within 72 hours.
- Durable and Reliable: Aluminum alloy housing and SF6 insulation ensure long-term operational stability.
- Low Maintenance: Modular components and automated monitoring simplify maintenance routines.
- Cost-Effective: Reduced civil engineering requirements and quick installation lower overall project costs.
- Environmental Resistance: Withstands extreme weather conditions and is ISO 9001-certified for quality assurance.
Where Can Box Type Substations Be Used?
Box Type Substations are versatile and suitable for various applications:
- Urban and rural power distribution networks
- Commercial and industrial facilities
- Renewable energy integration such as solar farms
- Temporary construction sites or emergency power supply
- Railways, airports, and other infrastructure projects
TOONICE’s BTS solutions provide customized options to meet unique project requirements, making them a reliable choice for diverse power applications.
How Is a Box Type Substation Installed?
Installation of a BTS involves several straightforward steps due to its modular design:
- Site preparation: Ensure a stable foundation and proper grounding.
- Delivery and placement: Prefabricated unit is transported and positioned on-site.
- Electrical connections: Connect high-voltage and low-voltage lines.
- Commissioning: Test all systems including transformer, switchgear, and protection devices.
- Monitoring: Activate intelligent monitoring systems for real-time performance tracking.
The compact nature of TOONICE's BTS ensures minimal disruption and quick setup, reducing project downtime significantly.
How to Maintain a Box Type Substation?
Regular maintenance is crucial for BTS longevity. Recommended practices include:
- Inspect transformers and switchgear monthly for signs of wear or overheating.
- Check insulation systems, including SF6 gas levels and airtight seals.
- Verify temperature and load monitoring systems are operational.
- Clean enclosure exterior to prevent dust accumulation and corrosion.
- Conduct annual high-voltage testing and component inspections.
Proper maintenance ensures that TOONICE's BTS units maintain a failure rate below 0.5% over a lifespan exceeding 30 years.
Frequently Asked Questions
- Q1: How does a Box Type Substation differ from a traditional substation?
- A: BTS is a compact, modular, prefabricated unit integrating high-voltage, transformer, and low-voltage distribution systems, reducing installation time, cost, and space compared to conventional substations.
- Q2: Can BTS handle extreme environmental conditions?
- A: Yes, TOONICE BTS features fully-sealed aluminum alloy enclosures capable of operating between -40℃ and 60℃, with SF6 insulation for enhanced safety.
- Q3: Is customization available for specific project needs?
- A: Absolutely. TOONICE provides ODM/OEM services for BTS, including size, voltage ratings, and additional monitoring features.
- Q4: How long does installation take?
- A: Thanks to the prefabricated design, a BTS can typically be installed and operational within 72 hours.
- Q5: What is the expected lifespan of a Box Type Substation?
- A: With proper maintenance, TOONICE BTS units have a lifespan exceeding 30 years.
Contact TOONICE for Your Power Solutions
Elevate your power distribution system with TOONICE's reliable and cost-effective Box Type Substations. Whether you require rapid deployment, durable infrastructure, or customized solutions, our expert team is ready to assist. Contact us today to upgrade your electrical network efficiently and affordably.
